STP130N6F7 - N-Channel MOSFET

INCHANGE

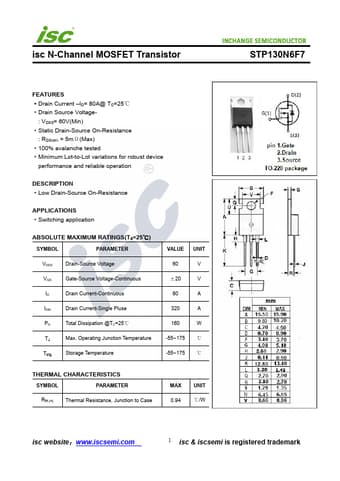

STP130N6F7 Datasheet Preview — Preview of STP130N6F7 PDF

Datasheet Details

Part number	STP130N6F7
Manufacturer	INCHANGE
File Size	272.21 KB
Description	N-Channel MOSFET
Datasheet	STP130N6F7-INCHANGE.pdf

STP130N6F7 Product details

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 60 V ±20 V 80 A 320 A 160 W -55~175 ℃ -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance

Features

Drain Current.
ID= 80A@ TC=25℃.
Drain Source Voltage- : VDSS= 60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 5mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
