IRGP20B120UD-E - INSULATED GATE BIPOLAR TRANSISTOR

Product Overview

IRF

Part number	IRGP20B120UD-E
Manufacturer	IRF
File Size	148.42 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRGP20B120UD-E Datasheet

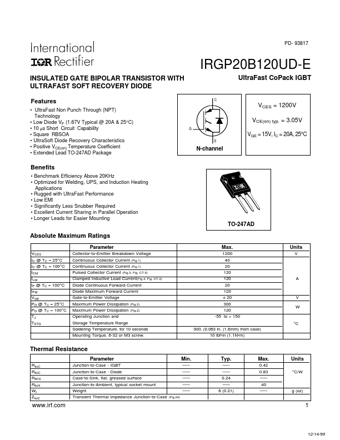

Additional preview pages of the IRGP20B120UD-E datasheet.

UltraFast Non Punch Through (NPT) Technology.
Low Diode VF (1.67V Typical @ 20A & 25°C).
10 µs Short Circuit Capability.
Square RBSOA.
UltraSoft Diode Recovery Characteristics.
Positive VCE(on) Temperature Coefficient.
Extended Lead TO-247AD Package C UltraFast CoPack IGBT VCES = 1200V VCE(on) typ. = 3.05V G VGE = 15V, IC = 20A, 25°C E N-channel Benefits.
Benchmark Efficiency Above 20KHz.
Optimized for Welding.
