IRGP35B60PD Description

PD - 94623B SMPS IGBT WARP2 SERIES IGBT WITH ULTRAFAST SOFT RECOVERY DIODE Applications * Telecom and Server SMPS * PFC and ZVS SMPS.

IRGP35B60PD Features

* NPT Technology, Positive Temperature Coefficient
* Lower VCE(SAT)
* Lower Parasitic Capacitances
* Minimal Tail Current
* HEXFRED Ultra Fast Soft-Recovery Co-Pack Diode
* Tighter Distribution of Parameters
* Higher Reliability Benefits

IRGP35B60PD Applications

* Telecom and Server SMPS
* PFC and ZVS SMPS Circuits
* Uninterruptable Power Supplies

📥 Download Datasheet

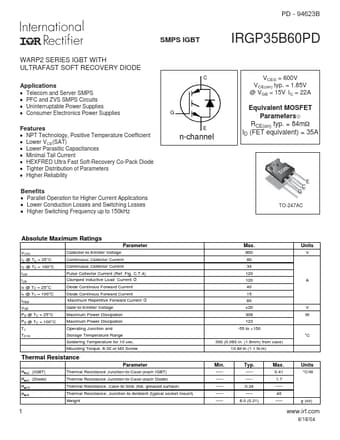

IRGP35B60PD Datasheet Preview — Preview of IRGP35B60PD PDF

Datasheet Details

Part number: IRGP35B60PD
Manufacturer: IRF
File Size: 346.04 KB
Datasheet: IRGP35B60PD_IRF.pdf
Description: WARP2 SERIES IGBT
