IRGP30B120KD-EP - INSULATED GATE BIPOLAR TRANSISTOR

Features

  • Low VCE(on) Non Punch Through (NPT) Technology.
  • Low Diode VF (1.76V Typical @ 25A & 25°C).
  • 10 μs Short Circuit Capability.
  • Square RBSOA.
  • Ultrasoft Diode Recovery Characteristics.
  • Positive VCE(on) Temperature Coefficient.
  • Extended Lead TO-247AD Package.
  • Lead-Free C G E N-channel VCES = 1200V VCE(on) typ. = 2.28V VGE = 15V, IC = 25A, 25°C Benefits C.
  • Benchmark Efficiency for Motor Control.

📥 Download Datasheet

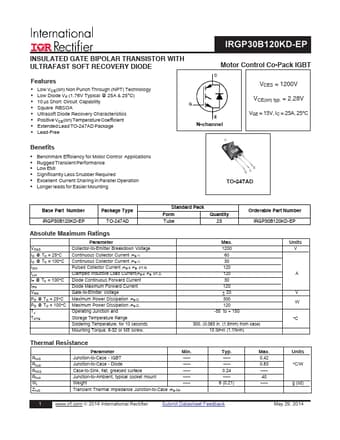

Datasheet preview – IRGP30B120KD-EP

📁 Similar Datasheet

Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
IRGP30B120KD-EP INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE Motor Control Co-Pack IGBT Features • Low VCE(on) Non Punch Through (NPT) Technology • Low Diode VF (1.76V Typical @ 25A & 25°C) • 10 μs Short Circuit Capability • Square RBSOA • Ultrasoft Diode Recovery Characteristics • Positive VCE(on) Temperature Coefficient • Extended Lead TO-247AD Package • Lead-Free C G E N-channel VCES = 1200V VCE(on) typ. = 2.
