IRGP20B60PDPBF Datasheet - International Rectifier

IRGP20B60PDPBF WARP2 SERIES IGBT

SMPS IGBT PD - 95558 IRGP20B60PDPbF WARP2 SERIES IGBT WITH ULTRAFAST SOFT RECOVERY DIODE www.datasheet4u.com Applications C Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power Supplies Consumer Electronics Power Supplies Lead-Free NPT Technology, Positive Temperature Coefficient Lower VCE(SAT) Lower Parasitic Capacitances Minimal Tail Current HEXFRED U.

IRGP20B60PDPBF Features

* n-channel Equivalent MOSFET Parameters RCE(on) typ. = 158mΩ ID (FET equivalent) = 20A Benefits

* Parallel Operation for Higher Current Applications

* Lower Conduction Losses and Switching Losses

* Higher Switching Frequency up to 150kHz E C G TO-247AC Absolute Maximum

IRGP20B60PDPBF Datasheet (444.33 KB)

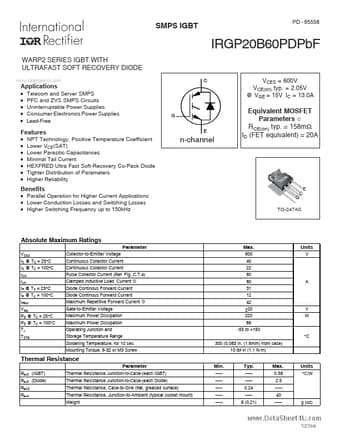

IRGP20B60PDPBF Datasheet Preview — Preview of IRGP20B60PDPBF PDF

Datasheet Details

Part number:

IRGP20B60PDPBF

Manufacturer:

International Rectifier

File Size:

444.33 KB

Description:

Warp2 series igbt.
