- IRGP20B120U-EP
- Manufacturer
- International Rectifier
- File Size
- 214.79 KB
- Datasheet
- IRGP20B120U-EP_InternationalRectifier.pdf
- Description
- INSULATED GATE BIPOLAR TRANSISTOR
IRGP20B120U-EP Description

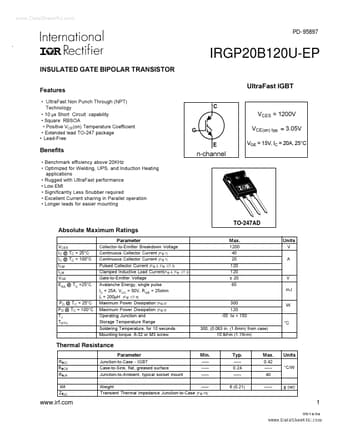

www.DataSheet4U.com PD- 95897 IRGP20B120U-EP INSULATED GATE BIPOLAR TRANSISTOR .
IRGP20B120U-EP Features
* UltraFast Non Punch Through (NPT) Technology 10 µs Short Circuit capability Square RBSOA Positive VCE(on) Temperature Coefficient Extended lead TO-247 package Lead-Free
UltraFast IGBT
C
VCES = 1200V
G E
VCE(on) typ. = 3.05V
VGE = 15V, IC = 20A, 25°C
Benefits
Benchmark efficiency ab
IRGP20B120U-EP Applications
* Rugged with UltraFast performance Low EMI Significantly Less Snubber required Excellent Current sharing in Parallel operation Longer leads for easier mounting
n-channel
TO-247AD
Absolute Maximum Ratings
Parameter
V CES IC @ TC = 25°C I C @ TC = 100°C I CM I LM V GE EAS @ TC =25°C Collec
