IS61WV2568FBLL, IS64WV2568FALL, 256K x 8 HIGH SPEED AYNCHRONOUS CMOS STATIC RAM

IS61/64WV2568FALL IS61/64WV2568FBLL 256Kx8 HIGH SPEED AYNCHRONOUS CMOS STATIC RAM AUGUST 2020 KEY .
The ISSI IS61/64WV2568FALL/FBLL are high-speed, low power, 2M bit static RAMs organized as 256K words by 8 bits.

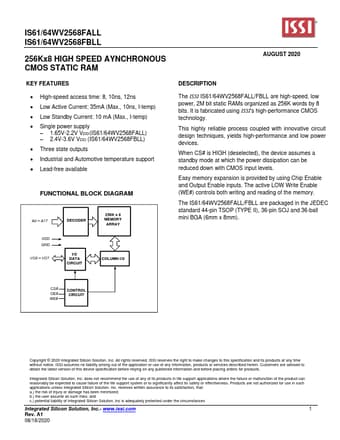

datasheet Preview Page 1 from Datasheet4u.com

IS64WV2568FALL-ISSI.pdf

IS61WV2568FBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS61WV2568FBLL, IS64WV2568FALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS61WV2568FBLL, IS64WV2568FALL

Manufacturer:

ISSI

File Size:

887.31 KB

Description:

256K x 8 HIGH SPEED AYNCHRONOUS CMOS STATIC RAM

Note:

This datasheet PDF includes multiple part numbers: IS61WV2568FBLL, IS64WV2568FALL.
Please refer to the document for exact specifications by model.

Features

* High-speed access time: 8, 10ns, 12ns
* Low Active Current: 35mA (Max. , 10ns, I-temp)
* Low Standby Current: 10 mA (Max. , I-temp)
* Single power supply
* 1.65V-2.2V VDD(IS61/64WV2568FALL)
* 2.4V-3.6V VDD (IS61/64WV2568FBLL)
* Three state outputs
* Industrial

Applications

* where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless Integrated Silicon Solution, Inc. receives written assurance
