Polar3TM HiperFETTM Power MOSFET
N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier
IXFT50N60P3 IXFQ50N60P3 IXFH50N60P3
Symbol
VDSS VDGR
VGSS VGSM
ID25 IDM
IA EAS
dv/dt
PD
TJ TJM Tstg TL TSOLD
Md Weight
Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS IDM, VDD VDSS, TJ 150°C TC = 25C
Maximum Lead Temperature for Soldering Plastic Body for 10s Mounting Torque (TO-247 & TO-3P) TO-268 TO-3P TO-247
Maximum Ratings
600
V
600
V
30
V
40
V
50
A
125
A
25
A
1
J
35
V/ns
1040
W
-55 ... +150 150
-55 ... +150
C C C
300
°C
260
°C
1.13 / 10
4.0 5.5 6.0
Nm/lb.

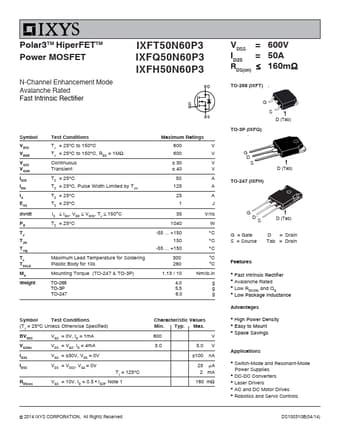

IXFH50N60P3 Datasheet
