IXFL36N110P Polar Power MOSFET HiPerFET

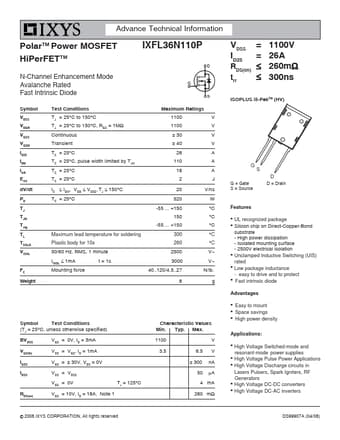

Advance Technical Information PolarTM Power MOSFET HiPerFETTM N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAS dV/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight www.DataSheet4U.net IXFL36N110P VDSS ID25 RDS(on) trr = = ≤ ≤ 1100V 26A 260mΩ 300ns ISOPLUS i5-PakTM (HV) Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ V.

IXFL36N110P Features

* z z z UL recognized package Silicon chip on Direct-Copper-Bond substrate - High power dissipation - Isolated mounting surface - 2500V electrical isolation Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect Fast intrinsic diode Advantages z z z Symbol
