IXGH48N60A3, IXGA48N60A3 Datasheet - IXYS Corporation

IXGH48N60A3 - GenX3 600V IGBT

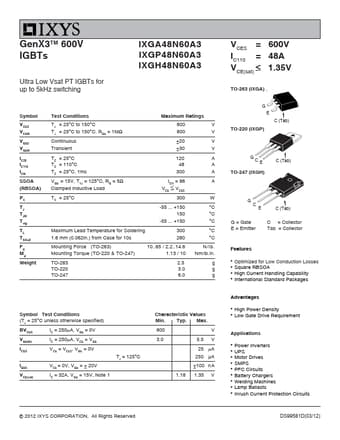

GenX3TM 600V IGBTs Ultra Low Vsat PT IGBTs for up to 5kHz switching IXGA48N60A3 IXGP48N60A3 IXGH48N60A3 Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient Maximum Ratings 600 V 600 V ±20 V ±30 V TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 5Ω Clamped Inductive Load TC = 25°C 120 48 300 ICM = 96 ≤ VCE VCES 300 -55 +150 150 -55 +150 Max

IXGH48N60A3 Features

* z Optimized for Low Conduction Losses z Square RBSOA z High Current Handling Capability z International Standard Packages Advantages z High Power Density z Low Gate Drive Requirement Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z Battery Chargers z Welding Machines z Lam
