IXGH48N60C3 GenX3 600V IGBT

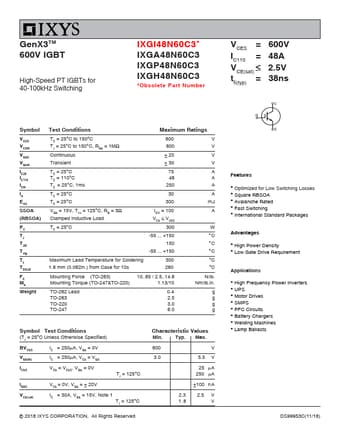

GenX3TM 600V IGBT High-Speed PT IGBTs for 40-100kHz Switching IXGI48N60C3 IXGA48N60C3 IXGP48N60C3 IXGH48N60C3 Obsolete Part Number VCES = IC110 = VCE(sat)  tfi(typ) = 600V 48A 2.5V 38ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM IA EAS SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions Maximum Ratings TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M Continuous Transient 600 V 600 V ± 20 V ± 30 V TC = 25°C TC = 110°C TC = 25°C, 1ms 75 A 48 A 250 A .

IXGH48N60C3 Features

* Optimized for Low Switching Losses

* Square RBSOA

* Avalanche Rated

* Fast Switching

* International Standard Packages Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* High Frequency Power Inverters

* UPS

* Motor Drives

* SMPS
