IXGH48N60C3D1 Datasheet, IGBT, IXYS Corporation

IXGH48N60C3D1 Features

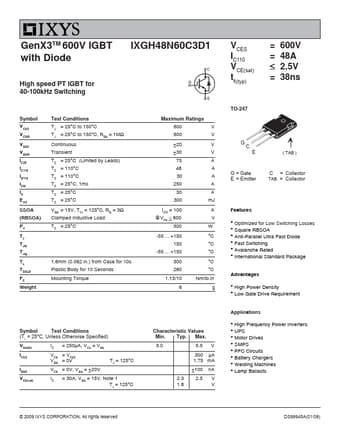

• Igbt z z z z z z G C E ( TAB ) G = Gate E = Emitter C = Collector TAB = Collector Optimized for Low Switching Losses Square RBSOA Anti-Parallel Ultra Fast Diode Fast Switching Avala

PDF File Details

Part number:

IXGH48N60C3D1

Manufacturer:

IXYS Corporation

File Size:

262.65kb

Download:

📄 Datasheet

Description:

Genx3 600v igbt.

IXGH48N60C3D1 Application

• Applications z Symbol Test Conditions (TJ = 25°C, Unless Otherwise Specified) VGE(th) ICES IGES VCE(sat) IC = 250μA, VCE = VGE TJ = 125°C VCE = VCE
