* l l Mounting torque 1.13/10 Nm/lb.in. TO-204 = 18 g, TO-247 = 6 g 300 °C Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s l l l Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 600 5 TJ = 25°C TJ = 125°C 8 100 1 ±
IXSH30N60 Datasheet (217.81 KB)
IXSH30N60
IXYS Corporation
217.81 KB
Low vce(sat) igbt.

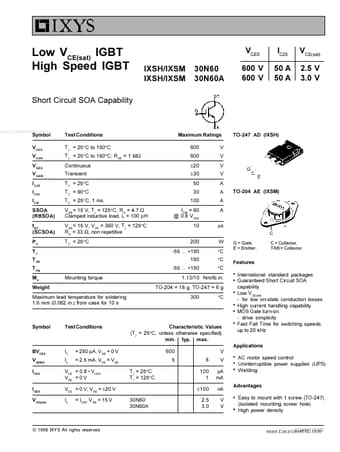

Low VCE(sat) IGBT High Speed IGBT Short Circuit SOA Capability VCES IXSH/IXSM IXSH/IXSM 30N60 30N60A 600 V 600 V IC25 50 A 50 A VCE(sat) 2.5 V 3.0 .
