IXSH30N60A IGBT Datasheet - IXYS Corporation

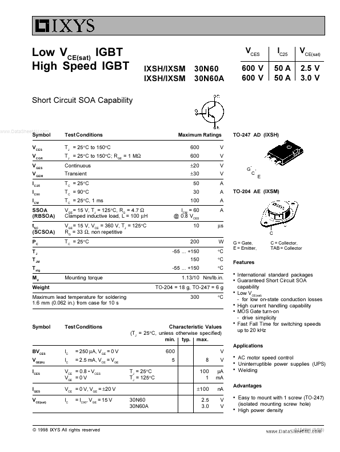

IXSH30N60A Features

Igbt l l Mounting torque 1.13/10 Nm/lb.in. TO-204 = 18 g, TO-247 = 6 g 300 °C Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s l l l Symbol Test Conditions

PDF File Details

Part number:

IXSH30N60A

Manufacturer:

IXYS Corporation

File Size:

217.81kb

Download:

📄 Datasheet

Description:

Low vce(sat) igbt.

📥 Download PDF (217.81kb)

IXSH30N60A Application

Applications l l l VCE = 0.8 VCES VGE = 0 V VCE = 0 V, VGE = ±20 V IC = IC90, VGE = 15 V AC motor speed control Uninterruptible power supplies (
