IXSH30N60B2D1 Datasheet, Diode, IXYS

IXSH30N60B2D1 Features

  • Diode
  • International standard package
  • Guaranteed Short Circuit SOA capability
  • Low VCE(sat) - for low on-state conduction losses
  • High current handling ca

PDF File Details

Part number:

IXSH30N60B2D1

Manufacturer:

IXYS

File Size:

637.05kb

Download:

📄 Datasheet

Description:

High speed igbt with diode.

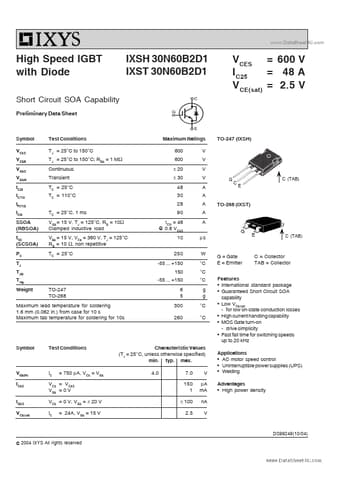

Datasheet Preview: IXSH30N60B2D1 📥 Download PDF (637.05kb)
Page 2 of IXSH30N60B2D1 Page 3 of IXSH30N60B2D1

IXSH30N60B2D1 Application

  • Applications
  • AC motor speed control
  • Uninterruptible power supplies (UPS)
  • Welding Advantages
  • High power densi
