IXSN80N60BD1 Datasheet, Igbt, IXYS Corporation

IXSN80N60BD1 Features

  • Igbt International standard package z Aluminium-nitride isolation - high power dissipation z Isolation voltage 3000 V~ z UL registered E 153432 z Low VCE(sat) - for minimum on-state conducti

PDF File Details

Part number:

IXSN80N60BD1

Manufacturer:

IXYS Corporation

File Size:

627.37kb

Download:

📄 Datasheet

Description:

High current igbt.

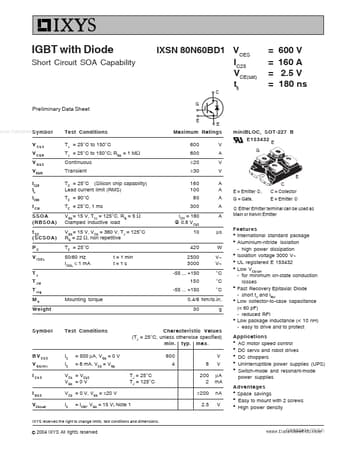

Datasheet Preview: IXSN80N60BD1 📥 Download PDF (627.37kb)
Page 2 of IXSN80N60BD1 Page 3 of IXSN80N60BD1

IXSN80N60BD1 Application

  • Applications z AC motor speed control z DC servo and robot drives z DC choppers z Uninterruptible power supplies (UPS) z Switch-mode and resonant-mo
