IXTH21N50, MegaMOSFET

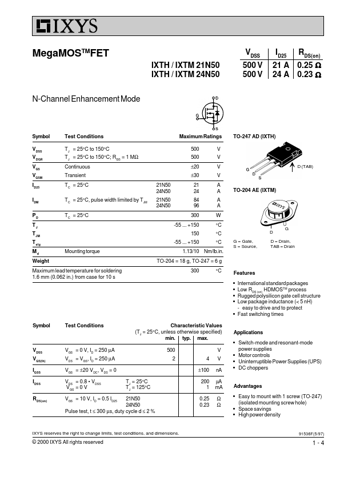

MegaMOSTMFET IXTH / IXTM 21N50 IXTH / IXTM 24N50 N-Channel Enhancement Mode VDSS 500 V 500 V ID25 RDS(on) 21 A 0.25 Ω 24 A 0.23 Ω Symbol VDSS VDG.

datasheet Preview Page 1 from Datasheet4u.com

IXTH21N50_IXYSCorporation.pdf

IXTH21N50 Datasheet Preview — Preview of IXTH21N50 PDF

Datasheet Details

Part number:

IXTH21N50

Manufacturer:

IXYS Corporation

File Size:

107.40 KB

Description:

MegaMOSFET

Features

* l l l l Maximum lead temperature for soldering 1.6 mm (0.062 in. ) from case for 10 s l International standard packages Low RDS (on) HDMOSTM process Rugged polysilicon gate cell structure Low package inductance (< 5 nH) - easy to drive and to protect Fast switching times Symbol Test Conditions

Applications

* l VDSS VGS(th) IGSS IDSS R DS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 250 µA VGS = ±20 VDC, VDS = 0 VDS = 0.8
* VDSS VGS = 0 V VGS = 10 V, ID = 0.5 ID25 l l l Switch-mode and resonant-mode power supplies Motor controls Uninterruptible Power Supplies (UPS) DC choppers Advantages l 21
