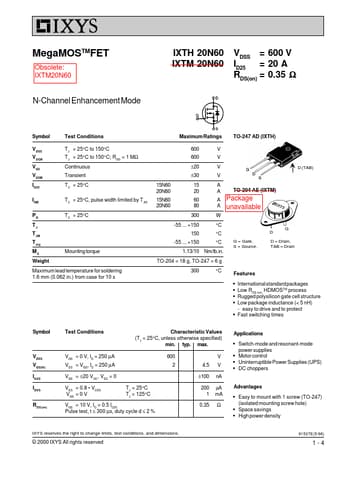

MegaMOSTMFET Obsolete: IXTM20N60 N-Channel Enhancement Mode IXTH 20N60 IXTM 20N60 VDSS = 600 V ID25 = 20 A RDS(on) = 0.35 Ω Symbol Test Conditions Maximum Ratings TO-247 AD (IXTH) VDSS V DGR VGS VGSM ID25 IDM TJ = 25°C to 150°C T J = 25°C to 150°C; R GS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM P D TJ TJM Tstg Md Weight T C = 25°C Mounting torque Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s 600 V 600 V

IXTH20N60 Features

* l International standard packages l Low RDS (on) HDMOSTM process l Rugged polysilicon gate cell structure l Low package inductance (< 5 nH) - easy to drive and to protect l Fast switching times Symbol VDSS V GS(th) I GSS IDSS R DS(on) Test Conditions Characteristic Values (TJ = 25°C, unless othe
