IXTH240N055T Power MOSFET

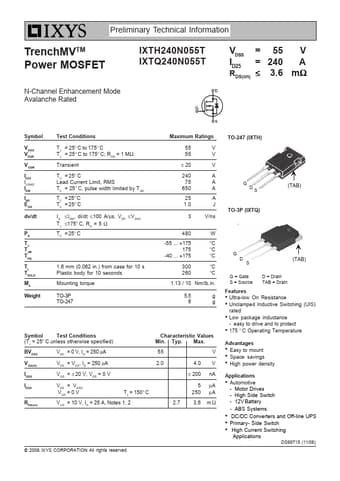

Preliminary Technical Information TrenchMVTM Power MOSFET IXTH240N055T IXTQ240N055T N-Channel Enhancement Mode Avalanche Rated VDSS = ID25 = RDS(on) ≤ 55 240 3.6 V A mΩ Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25° C to 175° C TJ = 25° C to 175° C; RGS = 1 MΩ Transient TC = 25° C Lead Current Limit, RMS TC = 25° C, pulse width limited by TJM TC = 25° C TC = 25° C IS ≤IDM, di/dt ≤100 A/µs, VDD ≤VDSS TJ ≤175° C, RG = 5 Ω TC = .

IXTH240N055T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 ° C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - High Side Switch - 12V Battery - ABS Systems DC/D
