IXTH24N50L Power MOSFET

LinearTM Power MOSFET w/ Extended FBSOA IXTH24N50L N-Channel Enhancement Mode Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD TJ TJM Tstg TL Tsold Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 seconds Mounting Torque Maximum Ratings 500 500 V V ± 30 V ± 40 V 24 A 50 A 12 A 1.5 J 400 W -55 +.

IXTH24N50L Features

* Designed for Linear Operation

* International Standard Package

* Avalanche Rated

* Molding Epoxy Meets UL94 V-0 Flammability Classification Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* Programmable Lo

IXTH24N50L-IXYSCorporation.pdf

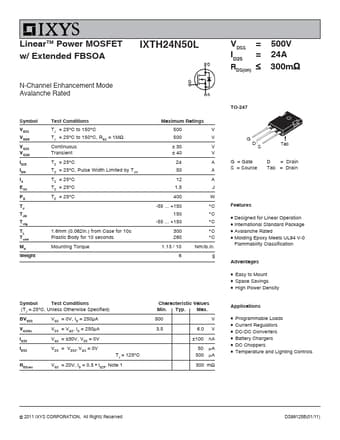

IXTH24N50L Datasheet Preview — Preview of IXTH24N50L PDF

Datasheet Details

Part number:

IXTH24N50L

Manufacturer:

IXYS Corporation

File Size:

106.74 KB

Description:

Power mosfet.
