Datasheet Details
- Part number
- IXTH240N055T
- Manufacturer
- INCHANGE
- File Size
- 334.92 KB
- Datasheet
- IXTH240N055T-INCHANGE.pdf
- Description
- N-Channel MOSFET

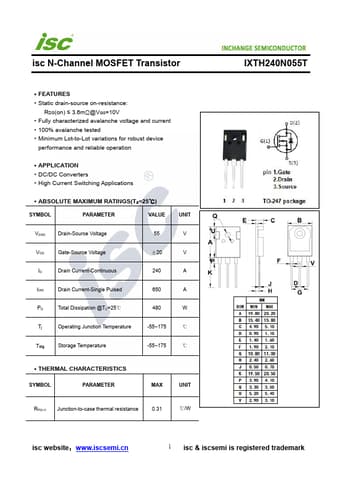

IXTH240N055T Description
isc N-Channel MOSFET Transistor *.
IXTH240N055T Features
* Static drain-source on-resistance:
RDS(on) ≤ 3.6mΩ@VGS=10V
* Fully characterized avalanche voltage and current
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device
performance and reliable operation
IXTH240N055T Applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VDSS
Drain-Source Voltage
55
V
VGS
Gate-Source Voltage
±20
V
ID
Drain Current-Continuous
240
A
IDM
Drain Current-Single Pulsed
650
A
PD
Total Dissipation @TC=25℃
480
W
Tj
Operating Junction Temperature
-55~
