IXTK82N25P Datasheet - IXYS Corporation

IXTK82N25P Power MOSFET

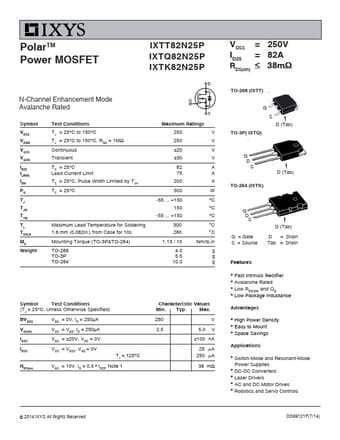

PolarTM Power MOSFET IXTT82N25P IXTQ82N25P IXTK82N25P VDSS = ID25 = RDS(on) 250V 82A 38m N-Channel Enhancement Mode Avalanche Rated Symbol VDSS VDGR VGSS VGSM ID25 ILRMS IDM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C Lead Current Limit TC = 25C, Pulse Width Limited by TJM TC = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque (TO-3P&TO-264) TO-268 TO-3P TO.

IXTK82N25P Features

* Fast Intrinsic Rectifier

* Avalanche Rated

* Low RDS(ON) and QG

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* Laser Drivers

* AC a
