IXTP6N50D2 Datasheet - IXYS Corporation

IXTP6N50D2 N-Channel MOSFET

Depletion Mode MOSFET N-Channel IXTA6N50D2 IXTP6N50D2 IXTH6N50D2 D VDSX = ID(on) >  RDS(on) 500V 6A 550m TO-263 AA (IXTA) Symbol VDSX VGSX VGSM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C Continuous Transient TC = 25C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10s Mounting Torque (TO-220 & TO-247) TO-263 TO-220 TO-247 G S Maximum Ratings 500 V 20 V 30 V 300 W - 55 +150 C 150 C - 55 +150 C 300 C 260 C 1.13 / 10 Nm/lb.in. .

IXTP6N50D2 Features

* Normally ON Mode

*  International Standard Packages

* Molding Epoxies Meet UL 94 V-0 Flammability Classification Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* Audio Amplifiers

* Start-up Circuits

IXTP6N50D2 Datasheet (179.76 KB)

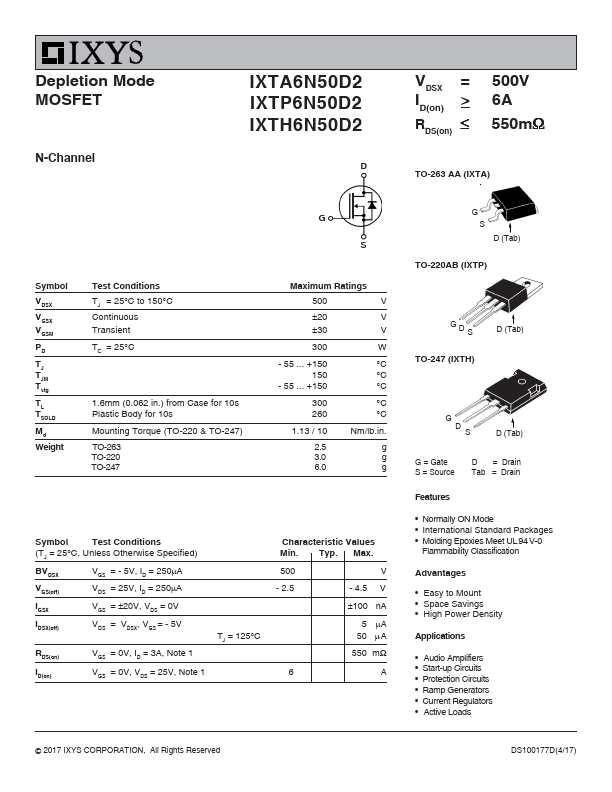

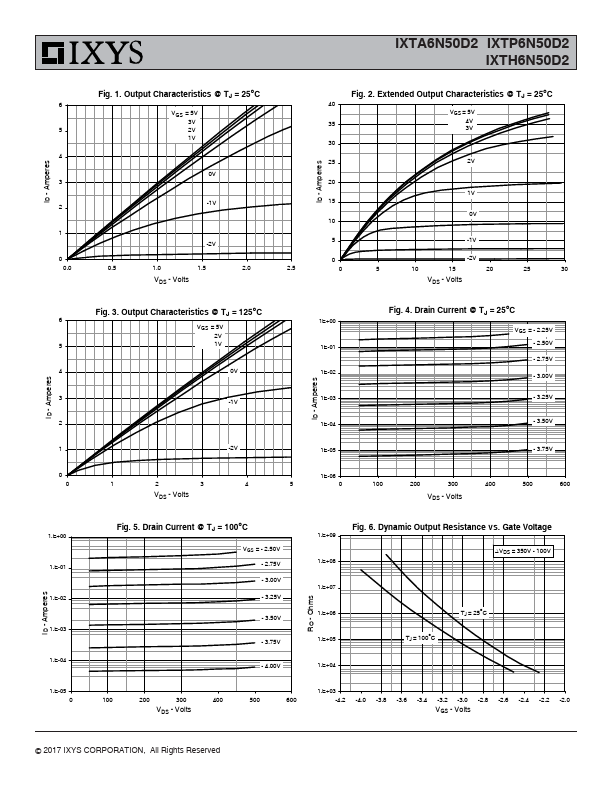

IXTP6N50D2 Datasheet Preview — Preview of IXTP6N50D2 PDF

Datasheet Details

Part number:

IXTP6N50D2

Manufacturer:

IXYS Corporation

File Size:

179.76 KB

Description:

N-channel mosfet.
