IXTP64N055T Datasheet - IXYS

IXTP64N055T Power MOSFET

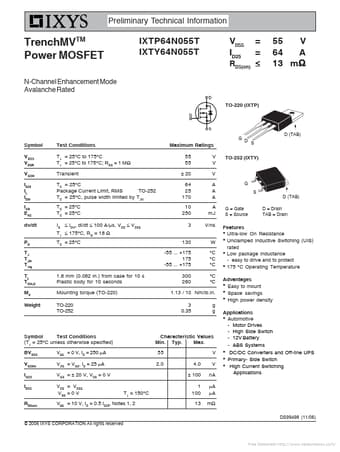

Preliminary Technical Information TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTP64N055T IXTY64N055T VDSS ID25 = = RDS(on) ≤ 55 V 64 A 13 mΩ TO-220 (IXTP) G D (TAB) D S Symbol V DSS VDGR VGSM ID25 IL IDM IAR EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C; RGS = 1 MΩ Transient TC = 25°C Package Current Limit, RMS TO-252 TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ V.

IXTP64N055T Features

* Ultra-low On Resistance Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect 175 °C Operating Temperature Advantages Easy to mount Space savings High power density Applications Automotive - Motor Drives - High Side Switch - 12V Battery - ABS Systems DC/DC C

IXTP64N055T Datasheet (189.65 KB)
