DSEI60-06A Fast Recovery Epitaxial Diode

IXYS

Description

FRED Fast Recovery Epitaxial Diode Single Diode Part number DSEI60-06A 3 1 DSEI60-06A VRRM = I FAV = t rr = 600 V 60 A 35 ns Backside: catho.

📥 Download Datasheet

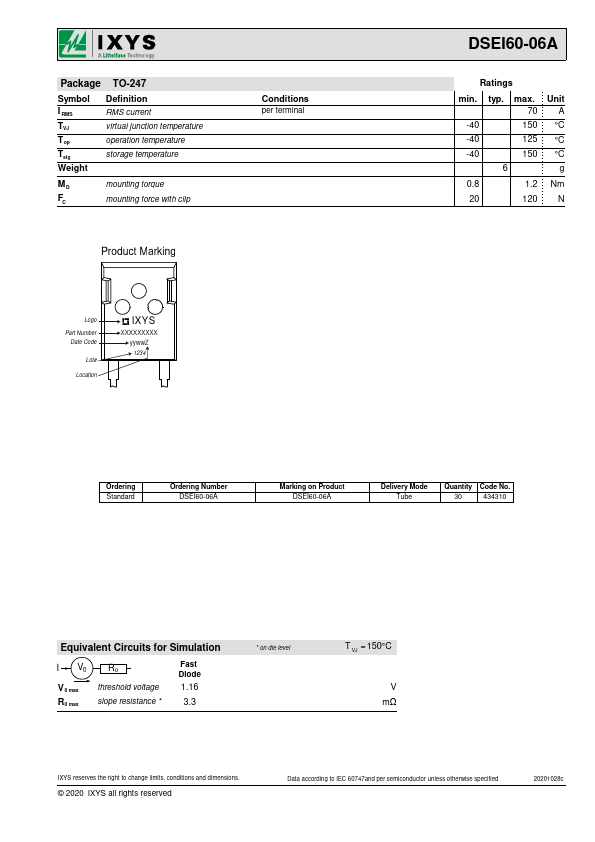

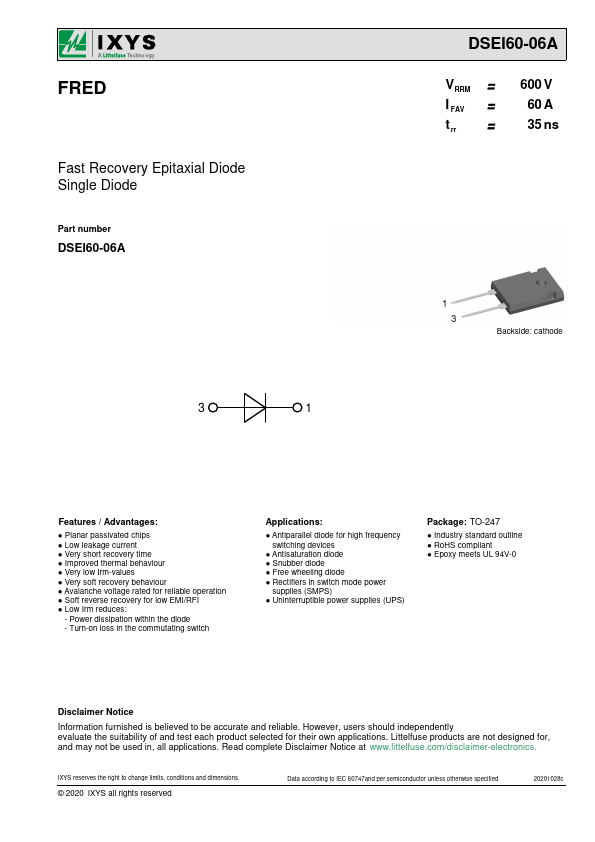

DSEI60-06A Datasheet Preview — Preview of DSEI60-06A PDF

Datasheet Specifications

Part number: DSEI60-06A
Manufacturer: IXYS
File Size: 298.68 KB
Datasheet: DSEI60-06A-IXYS.pdf
Description: Fast Recovery Epitaxial Diode

Features

* / Advantages:
* Planar passivated chips
* Low leakage current
* Very short recovery time
* Improved thermal behaviour
* Very low Irm-values
* Very soft recovery behaviour
* Avalanche voltage rated for reliable operation
* Soft reverse recovery for low EMI/RFI
* Lo

Applications

* Antiparallel diode for high frequency switching devices
* Antisaturation diode
* Snubber diode
* Free wheeling diode
* Rectifiers in switch mode power supplies (SMPS)
* Uninterruptible power supplies (UPS) Package: TO-247
* Industry standard outline
* RoHS complia
