IRFP250 Power MOSFET

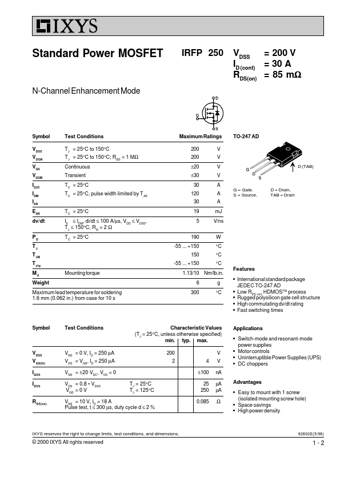

Standard Power MOSFET N-Channel Enhancement Mode IRFP 250 VDSS ID (cont) RDS(on) = 200 V = 30 A = 85 mΩ Symbol Test Conditions VDSS V DGR VGS VGSM ID25 IDM I AR EAR dv/dt PD T J TJM T stg Md Weight TJ = 25°C to 150°C T J = 25°C to 150°C; R GS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, RG = 2 Ω TC = 25°C Mounting torque Maximum lead temperature for soldering 1.6 mm (0.062 in.) from.

IRFP250 Features

* l International standard package JEDEC TO-247 AD l Low RDS (on) HDMOSTM process l Rugged polysilicon gate cell structure l High commutating dv/dt rating l Fast switching times Symbol VDSS V GS(th) IGSS IDSS R DS(on) Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min
