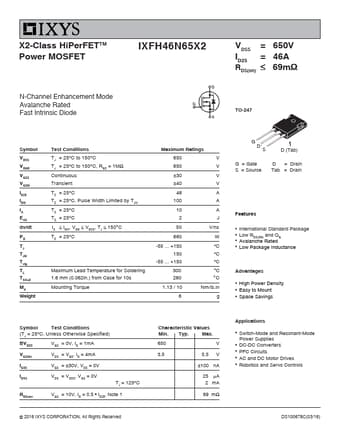

X2-Class HiPerFETTM Power MOSFET
IXFH46N65X2
N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode
VDSS = ID25 = RDS(on)
650V 46A 69m
TO-247
Symbol
VDSS VDGR
VGSS VGSM
ID25 IDM
IA EAS
dv/dt
PD
TJ TJM Tstg
TL TSOLD
Md Weight
Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS IDM, VDD VDSS, TJ 150°C TC = 25C
Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque
Maximum Ratings 650 650
V V
30 V 40 V
46 A 100 A
10 A 2J
50 V/ns
660 W
-55 ... +150 150
-55 ... +150
C C C
300 °C 260 °C
1.13 / 10
Nm/lb.
IXFH46N65X2 Datasheet
