IXFJ20N85X Power MOSFET

X-Class HiPerFETTM Power MOSFET (Electrically Isolated Tab) N-Channel Enhancement Mode Avalanche Rated IXFJ20N85X D G S VDSS = ID25 =  RDS(on) 850V 9.5A 360m ISO TO-247TM Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FC VISOL Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C Maximum Lead Temperature for Solder.

IXFJ20N85X Features

* Silicon Chip on Direct-Copper Bond (DCB) Substrate

* Isolated Mounting Surface

* 2500V~ Electrical Isolation

* Avalanche Rated

* Low RDS(ON) and QG

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch

IXFJ20N85X Datasheet (170.88 KB)

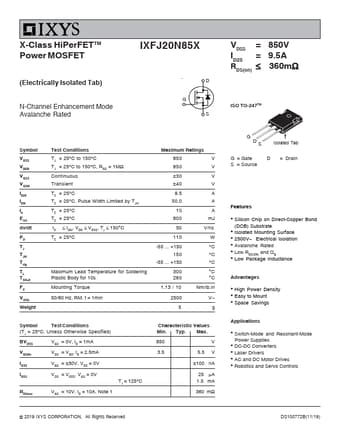

IXFJ20N85X Datasheet Preview — Preview of IXFJ20N85X PDF

Datasheet Details

Part number:

IXFJ20N85X

Manufacturer:

IXYS

File Size:

170.88 KB

Description:

Power mosfet.
