IXFN200N06 - HiPerFET Power MOSFETs

IXFN200N06 Description

www.DataSheet4U.com HiPerFETTM Power MOSFETs N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low trr VDSS IXFN 200 N06 IXFN 180 N07 IXFN 200.

IXFN200N06 Features

* International standard packages
* miniBLOC with Aluminium nitride isolation
* Low RDS (on) HDMOSTM process
* Rugged polysilicon gate cell structure
* Unclamped Inductive Switching (UIS) rated
* Low package inductance
* Fast intrinsic Rectifie

IXFN200N06 Applications

* DC-DC converters Synchronous rectification Battery chargers Switched-mode and resonant-mode power supplies
* DC choppers
* Temperature and lighting controls
* Low voltage relays Symbol Test Conditions Characteristic Values (TJ = 25°C

📥 Download Datasheet

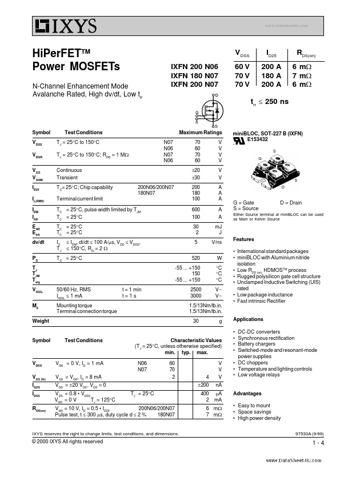

Preview of IXFN200N06 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFN200N06
Manufacturer
IXYS
File Size
214.65 KB
Datasheet
IXFN200N06_IXYS.pdf
Description
HiPerFET Power MOSFETs
