IXFN90N170SK SiC Power MOSFET

IXYS

Description

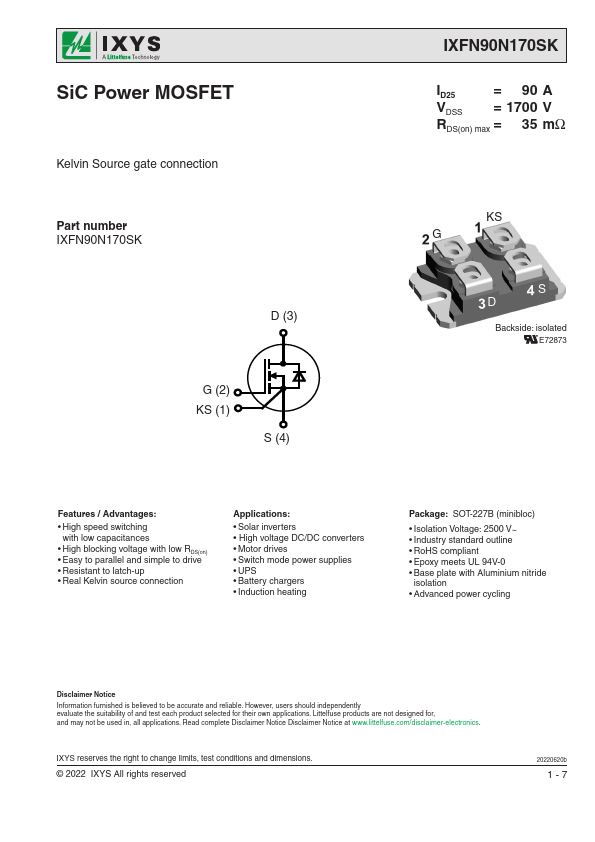

SiC Power MOSFET Kelvin Source gate connection Part number IXFN90N170SK D (3) G (2) KS (1) S (4) IXFN90N170SK ID25 = 90 A VDSS = 1700 V R = D.

📥 Download Datasheet

IXFN90N170SK Datasheet Preview — Preview of IXFN90N170SK PDF

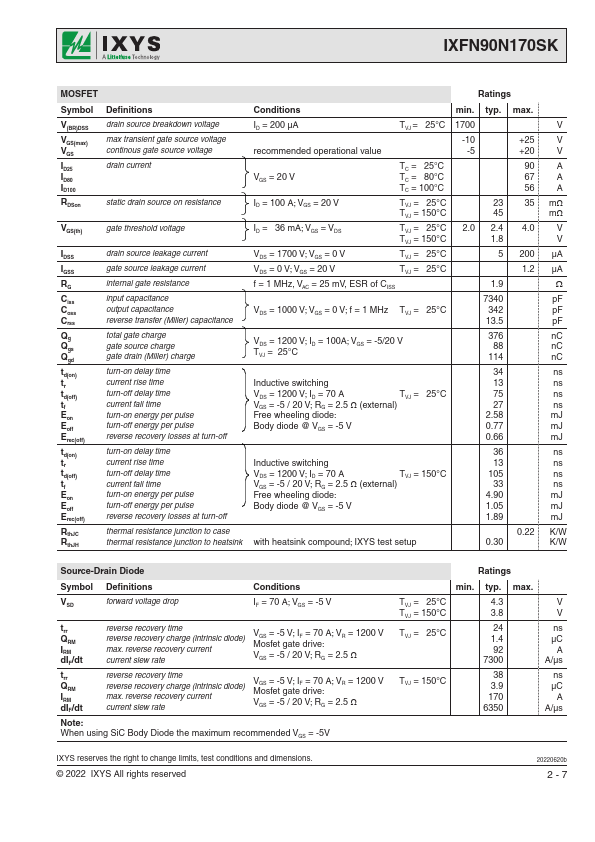

Datasheet Specifications

Part number: IXFN90N170SK
Manufacturer: IXYS
File Size: 560.06 KB
Datasheet: IXFN90N170SK-IXYS.pdf
Description: SiC Power MOSFET

Features

* / Advantages:
* High speed switching with low capacitances
* High blocking voltage with low RDS(on)
* Easy to parallel and simple to drive
* Resistant to latch-up

Applications

* Solar inverters
* High voltage DC/DC converters
* Motor drives
* Switch mode power supplies
* UPS
* Battery chargers

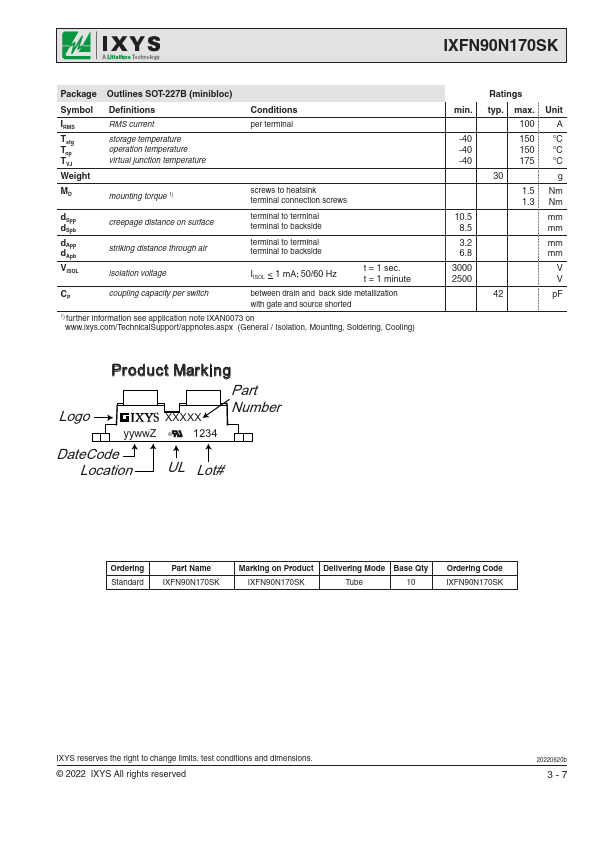

* Induction heating Package: SOT-227B (minibloc)
* Isolation Voltage: 2500 V~
* Industry standard outline
