IXKC23N60C5 Power MOSFET

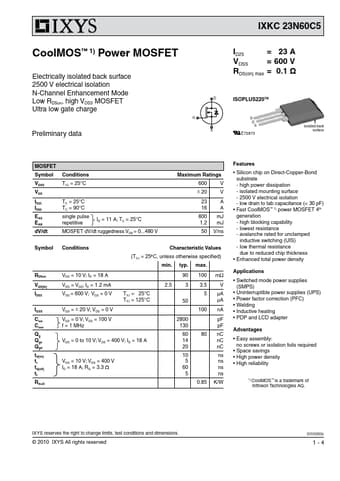

IXKC 23N60C5 CoolMOS™ 1) Power MOSFET Electrically isolated back surface 2500 V electrical isolation N-Channel Enhancement Mode Low RDSon, high VDSS MOSFET Ultra low gate charge Preliminary data D G S ID25 = 23 A VDSS = 600 V R = DS(on) max 0.1 Ω ISOPLUS220TM G D S E72873 isolated back surface MOSFET Symbol VDSS VGS ID25 ID90 EAS EAR dV/dt Conditions TVJ = 25°C TC = 25°C TC = 90°C single pulse repetitive ID = 11 A; TC = 25°C MOSFET dV/dt ruggedness VDS = 0480 V Maximum Ratings .

IXKC23N60C5 Features

* Silicon chip on Direct-Copper-Bond substrate - high power dissipation - isolated mounting surface - 2500 V electrical isolation - low drain to tab capacitance (< 30 pF)

* Fast CoolMOS™ 1) power MOSFET 4th generation - high blocking capability - lowest resistance - avalanche rated f
