IXTP150N15X4 Power MOSFET

X4-Class Power MOSFETTM Advance Technical Information IXTP150N15X4 IXTH150N15X4 VDSS = ID25 = RDS(on) 150V 150A 7.2m N-Channel Enhancement Mode Avalanche Rated TO-220 (IXTP) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 175C TJ = 25C to 175C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C Maximum Lead Temperature for Solderin.

IXTP150N15X4 Features

* International Standard Packages

* Low RDS(ON) and QG Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuit

IXTP150N15X4 Datasheet (296.41 KB)

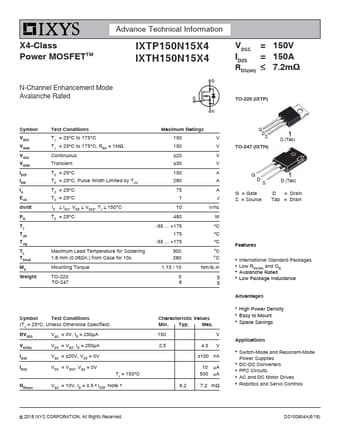

IXTP150N15X4 Datasheet Preview — Preview of IXTP150N15X4 PDF

Datasheet Details

Part number:

IXTP150N15X4

Manufacturer:

IXYS

File Size:

296.41 KB

Description:

Power mosfet.
