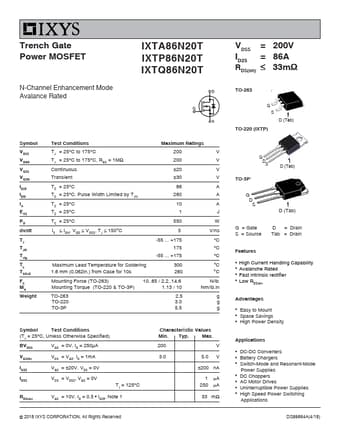

IXTQ86N20T Power MOSFET

Trench Gate Power MOSFET N-Channel Enhancement Mode Avalance Rated IXTA86N20T IXTP86N20T IXTQ86N20T Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD dv/dt TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 175C TJ = 25C to 175C, RGS = 1M Continuous Transient Maximum Ratings 200 V 200 V 20 V 30 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C 86 260 10 1 550 3 -55 +175 175 -55 +175 A A A J W V/ns C C.

IXTQ86N20T Features

* High Current Handling Capability

* Avalanche Rated

* Fast Intrinsic rectifier

* Low R DS(on) Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

* DC-DC Converters

* Battery Chargers

* Switch-Mode and Resonant-Mode Power Supplies

IXTA86N20T-IXYS.pdf

IXTQ86N20T Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTQ86N20T, IXTA86N20T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTQ86N20T, IXTA86N20T

Manufacturer:

IXYS

File Size:

309.10 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTQ86N20T, IXTA86N20T.
Please refer to the document for exact specifications by model.
