IXTQ86N25T Power MOSFET

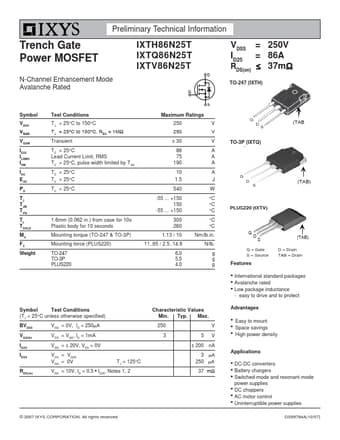

Preliminary Technical Information Trench Gate Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH86N25T IXTQ86N25T IXTV86N25T VDSS = ID25 = RDS(on) ≤ 250V 86A 37mΩ TO-247 (IXTH) Symbol VDSS VDGR VGSM ID25 I LRMS IDM IAS EAS PD TJ TJM Tstg TL TSOLD Md F C Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062 in.) from case for 10s Plastic b.

IXTQ86N25T Features

* (TAB) D = Drain TAB = Drain z International standard packages z Avalanche rated z Low package inductance - easy to drive and to protect Advantages z Easy to mount z Space savings z High power density Applications z DC-DC converters z Battery chargers z Switched-mode and resonant-mode power supp
