IXTR36P15P Power MOSFET

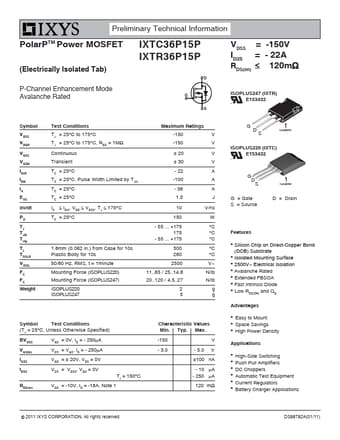

Preliminary Technical Information PolarPTM Power MOSFET (Electrically Isolated Tab) IXTC36P15P IXTR36P15P VDSS = -150V ID25 = - 22A RDS(on) ≤ 120mΩ P-Channel Enhancement Mode Avalanche Rated ISOPLUS247 (IXTR) E153432 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC FC Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 175.

IXTR36P15P Features

* z Silicon Chip on Direct-Copper Bond (DCB) Substrate z Isolated Mounting Surface z 2500V~ Electrical Isolation z Avalanche Rated z Extended FBSOA z Fast Intrinsic Diode z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z High-Side Switching z Push Pull

IXTC36P15P-IXYS.pdf

IXTR36P15P Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTR36P15P, IXTC36P15P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTR36P15P, IXTC36P15P

Manufacturer:

IXYS

File Size:

116.97 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTR36P15P, IXTC36P15P.
Please refer to the document for exact specifications by model.
