IXYX40N250CHV High Voltage IGBT

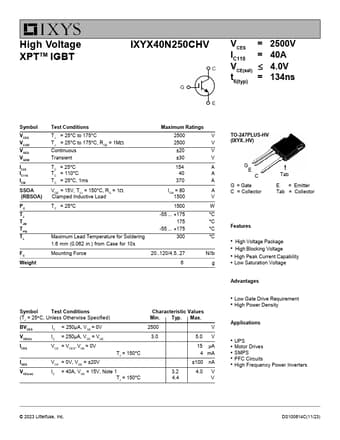

High Voltage XPTTM IGBT IXYX40N250CHV VCES = 2500V I = 40A C110 V  4.0V CE(sat) tfi(typ) = 134ns Symbol VCES V CGR VGES VGEM I C25 IC110 ICM SSOA (RBSOA) P C TJ TJM T stg T L F C Weight Test Conditions TJ = 25°C to 175°C T J = 25°C to 175°C, R GE = 1M Continuous Transient Maximum Ratings 2500 V 2500 V ±20 V ±30 V T = 25°C C TC = 110°C TC = 25°C, 1ms 154 A 40 A 370 A VGE = 15V, TVJ = 150°C, RG = 1 Clamped Inductive Load ICM = 80 A 1500 V T = 25°C C .

IXYX40N250CHV Features

* High Voltage Package

* High Blocking Voltage

* High Peak Current Capability

* Low Saturation Voltage Advantages

* Low Gate Drive Requirement

* High Power Density Applications

* UPS

* Motor Drives

* SMPS

* PFC Circuits

* High Frequency Power Inverters ©
