IXYX100N65C3D1 IGBT

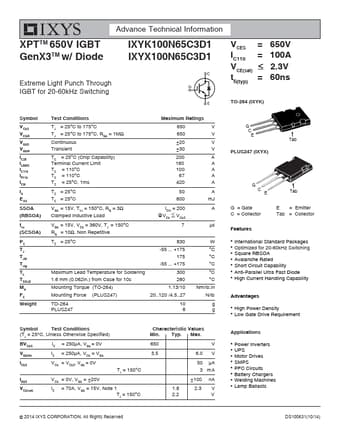

Advance Technical Information XPTTM 650V IGBT GenX3TM w/ Diode IXYK100N65C3D1 IXYX100N65C3D1 Extreme Light Punch Through IGBT for 20-60kHz Switching VCES = 650V IC110 = 100A VCE(sat)  2.3V tfi(typ) = 60ns TO-264 (IXYK) Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 IF110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 650 V 650 V ±20 V ±30 V TC = 25°C (Chip Ca.

IXYX100N65C3D1 Features

* International Standard Packages

* Optimized for 20-60kHz Switching

* Square RBSOA

* Avalanche Rated

* Short Circuit Capability

* Anti-Parallel Ultra Fast Diode

* High Current Handling Capability Advantages

* High Power Density

* Low Gate Drive Requirement Appl
