IXYX40N450HV High Voltage IGBT

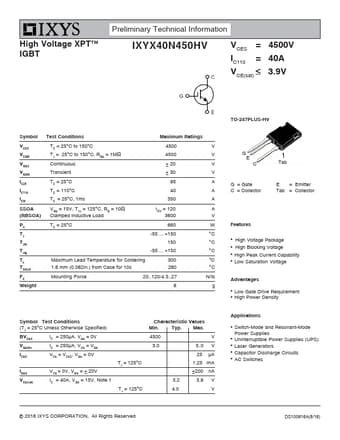

High Voltage XPTTM IGBT Preliminary Technical Information IXYX40N450HV VCES = IC110 = VCE(sat)  4500V 40A 3.9V Symbol Test Conditions Maximum Ratings VCES VCGR TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1M 4500 V 4500 V VGES VGEM Continuous Transient ± 20 V ± 30 V IC25 TC = 25°C 95 A IC110 TC = 110°C 40 A ICM TC = 25°C, 1ms 350 A SSOA VGE = 15V, TVJ = 125°C, RG = 10 ICM = 120 A (RBSOA) Clamped Inductive Load 3600 V PC TC = 25°C 660 W TJ -55 +150 .

IXYX40N450HV Features

* High Voltage Package

* High Blocking Voltage

* High Peak Current Capability

* Low Saturation Voltage Advantages

* Low Gate Drive Requirement

* High Power Density Applications

* Switch-Mode and Resonant-Mode Power Supplies

* Uninterruptible Power Supplies (UPS)

IXYX40N450HV Datasheet (199.05 KB)
