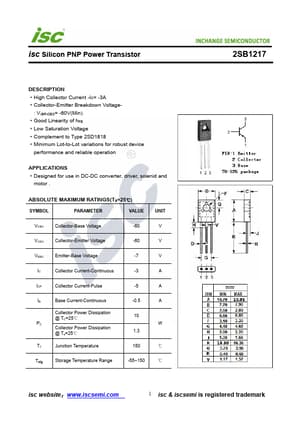

2SB1217 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SB1217

Manufacturer:

Inchange Semiconductor

File Size:

212.88kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

High Collector Current -IC= -3A

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min)

Good Linearity

2SB1217 Application

• Applications
• Designed for use in DC-DC converter, driver, solenid and motor . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE
