2SD1575 - Silicon NPN Transistor

Product Overview

📥 Download Datasheet

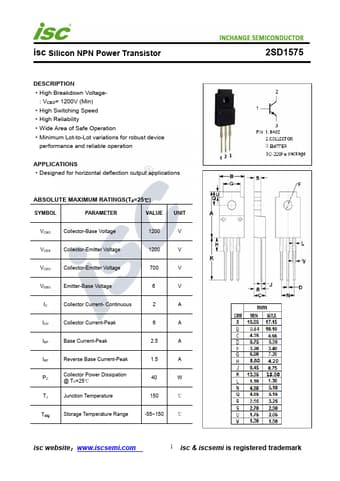

Datasheet preview – 2SD1575

Datasheet Details

Part number 2SD1575
Manufacturer Inchange Semiconductor
File Size 209.00 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SD1575 Datasheet
Additional preview pages of the 2SD1575 datasheet.

Product details

Description

High Breakdown Voltage- : VCBO= 1200V (Min) High Switching Speed High Reliability Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCES Collector-Emitter Voltage 1200 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base V
