2SD428 - Silicon NPN Power Transistors

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min) High Power Dissipation- : PC= 60W(Max)@TC=25℃ Complement to Type 2SB558 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for power amplifier applications.

📥 Download Datasheet

Datasheet preview – 2SD428

Datasheet Details

Part number 2SD428
Manufacturer Inchange Semiconductor
File Size 208.94 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2SD428 Datasheet
Additional preview pages of the 2SD428 datasheet.

📁 Similar Datasheet

  • 2SD424 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD424 - NPN Transistor (INCHANGE)
  • 2SD425 - (2SD425 / 2SD426) SILICON POWER TRANSISTOR (SavantIC)
  • 2SD425 - NPN Transistor (INCHANGE)
  • 2SD426 - (2SD425 / 2SD426) Silicon NPN Power Transistors (Savantic)
  • 2SD426 - NPN Transistor (INCHANGE)
  • 2SD400 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD400 - NPN Transistor (LGE)
  • 2SD400 - SILICON NPN TRANSISTOR (LZG)
  • 2SD400 - NPN Transistor (Yukuto)
Other Datasheets by Inchange Semiconductor
  • 2SD427 - Silicon NPN Power Transistors
  • 2SD458 - Silicon NPN Power Transistors
  • 2SD469 - Silicon NPN Power Transistor
  • 2SD476N - Silicon NPN Power Transistor
  • 2SD103 - Silicon NPN Power Transistors
  • 2SD1032 - Silicon NPN Power Transistor
  • 2SD1044 - Silicon NPN Darlington Power Transistor
  • 2SD1071 - Silicon NPN Transistor

Full PDF Text Transcription

Click to expand full text

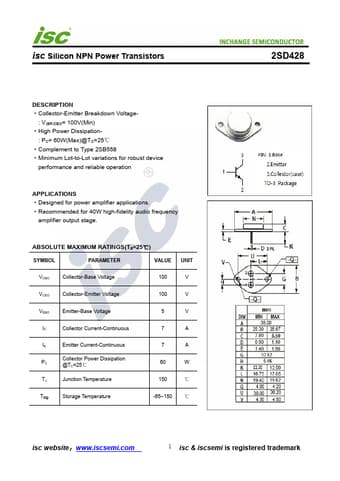

isc Silicon NPN Power Transistors DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min) ·High Power Dissipation- : PC= 60W(Max)@TC=25℃ ·Complement to Type 2SB558 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for power amplifier applications. ·Recommended for 40W high-fidelity audio frequency amplifier output stage. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 7 A IE Emitter Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature 7 A 60 W 150 ℃ Tstg Storage Temperature -65~150 ℃ 2SD428 isc website：www.
