3DD303A Silicon Power Transistor

Inchange

Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 40V(Min). Collector-Emitter Saturation Voltage- : VCE(sat)= 1. Minimum L.

📥 Download Datasheet

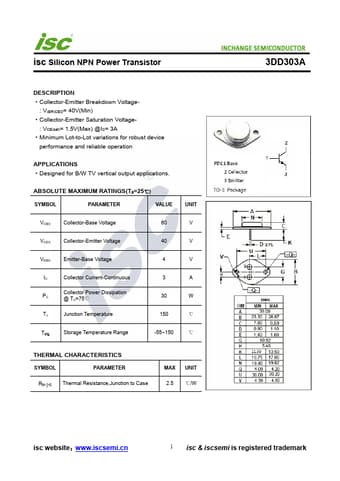

3DD303A Datasheet Preview — Preview of 3DD303A PDF

Datasheet Specifications

Part number: 3DD303A
Manufacturer: Inchange
File Size: 200.16 KB
Datasheet: 3DD303A_Inchange.pdf
Description: Silicon Power Transistor

Applications

* Designed for B/W TV vertical output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 40 V VEBO Emitter-Base Voltage 4 V IC Collector Current-Continuous PC Collector Power Dissipation @
