G30N60HS Datasheet - Infineon

G30N60HS High Speed IGBT

SGP30N60HS SGW30N60HS High Speed IGBT in NPT-technology 30% lower Eoff compared to previous generation Short circuit withstand time 10 µs Designed for operation above 30 kHz NPT-Technology for 600V applications offers: - parallel switching capability - moderate Eoff increase with temperature - very tight parameter distribution PG-TO-220-3-1 High ruggedness, temperature stable behaviour Pb-free lead plating; RoHS complian.

G30N60HS Datasheet (379.78 KB)

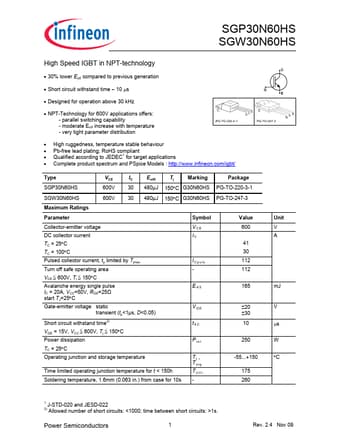

Preview of G30N60HS PDF
G30N60HS Datasheet Preview Page 2 G30N60HS Datasheet Preview Page 3

Datasheet Details

Part number:

G30N60HS

Manufacturer:

Infineon ↗

File Size:

379.78 KB

Description:

High speed igbt.
