G30N03D3 - N-Channel Trench MOSFET

📥 Download Datasheet

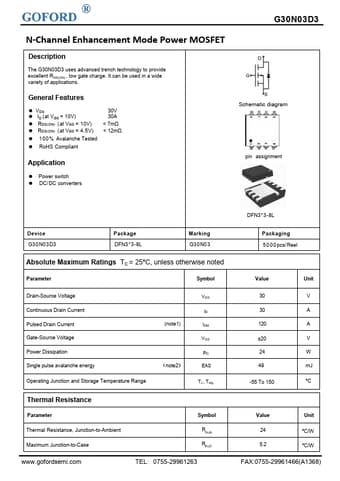

G30N03D3 Datasheet Preview — Preview of G30N03D3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	G30N03D3
Manufacturer	GOFORD
File Size	612.74 KB
Description	N-Channel Trench MOSFET
Datasheet	G30N03D3-GOFORD.pdf

G30N03D3 Product details

Description

The G30N03D3 uses advanced trench technology to provide excellent RDS(ON) , low gate charge.

Features

VDS.
ID (at VGS = 10V).
RDS(ON) (at VGS = 10V).
RDS(ON) (at VGS = 4.5V).
100% Avalanche Tested.
RoHS Compliant 30V 30A < 7mΩ < 12mΩ.
