G30N04

N-Channel Enhancement Mode Power MOSFET

G30N04 Features

* l VDS l ID (at VGS = 10V) l RDS(ON) (at VGS = 10V) l RDS(ON) (at VGS = 4.5V) l 100% Avalanche Tested l RoHS Compliant 40V 30A < 9mΩ < 12mΩ Schematic diagram pin assignment Application l Power switch l DC/DC converters Ordering Information Device G30N04D3 Package DFN3X3-8L Marking G30N04 DFN3

G30N04 Datasheet (727.50 KB)

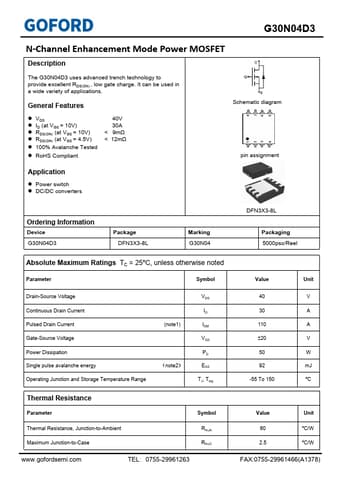

Preview of G30N04 PDF

Datasheet Details

Part number:

G30N04

Manufacturer:

GOFORD

File Size:

727.50 KB

Description:

N-channel enhancement mode power mosfet.
