IPP052N08N5 MOSFET

Infineon

Description

MOSFET Metal Oxide Semiconductor Field Effect Transistor OptiMOSTM OptiMOSª5 Power-Transistor, 80 V IPP052N08N5 Data Sheet Rev.2.0 Final Power Manage.
Features. Ideal for high frequency switching and sync. Excellent gate charge x RDS(on) product (FOM). Very low on-res.

📥 Download Datasheet

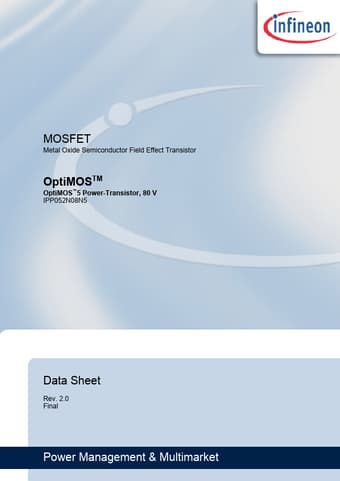

IPP052N08N5 Datasheet Preview — Preview of IPP052N08N5 PDF

Datasheet Specifications

Part number: IPP052N08N5
Manufacturer: Infineon ↗
File Size: 1.76 MB
Datasheet: IPP052N08N5-Infineon.pdf
Description: MOSFET

Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified according to J

Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 5.2 mΩ ID 80 A Qoss 51 nC QG(0V. .10V) 42 nC OptiMOSª5 Power-Transistor, 80 V IPP052N08N5 TO-220-3 tab Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Typ
