IRF6621PbF Power MOSFET

The IRF6621PbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries .

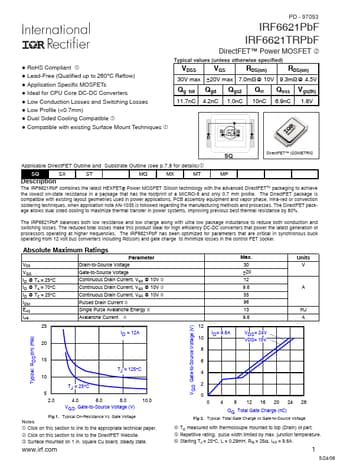

PD - 97093 IRF6621PbF IRF6621TRPbF DirectFET Power MOSFET l RoHS Compliant l Lead-Free (Qualified up to 260°C Reflow) l Application Specific MOSFETs l Ideal for CPU Core DC-DC Converters l Low Conduction Losses and Switching Losses l Low Profile (<0.7mm) l Dual Sided Cooling Compatible l Compatible with existing Surface Mount Techniques Typical values (unless otherwise specified) VDSS VGS RDS(on) RDS(on) 30V max ±20V max 7.0mΩ@ 10V 9.3mΩ@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) .

IRF6621PbF Features

* 0.1 1.0 10.0 100.0 VDS, Drain-to-Source Voltage (V) Fig11. Maximum Safe Operating Area 2.5 Typical VGS(th) Gate threshold Voltage (V) ID, Drain Current (A) EAS, Single Pulse Avalanche Energy (mJ) 50 40 2.0 ID = 250µA 30 20 1.5 10 0 25 50 75 100 125 150 TC, Case Temperature (°C) Fig 12.
