IRGP4086 Datasheet - International Rectifier

IRGP4086 PDP TRENCH IGBT

IRGP4086 Features

* Key Parameters l Advanced Trench IGBT Technology VCE min 300 V l Optimized for Sustain and Energy Recovery VCE(ON) typ. @ IC = 70A 1.90 V Circuits in PDP Applications l Low VCE(on) and Energy per Pulse (EPULSETM) for Improved Panel Efficiency IRP max @ TC= 25°C c TJ max 250 150 A °C l

IRGP4086 Datasheet (243.49 KB)

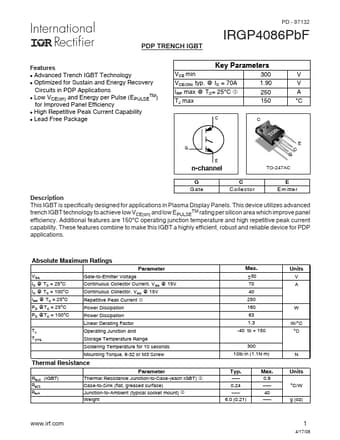

Preview of IRGP4086 PDF
IRGP4086 Datasheet Preview Page 2 IRGP4086 Datasheet Preview Page 3

Datasheet Details

Part number:

IRGP4086

Manufacturer:

International Rectifier

File Size:

243.49 KB

Description:

Pdp trench igbt.
