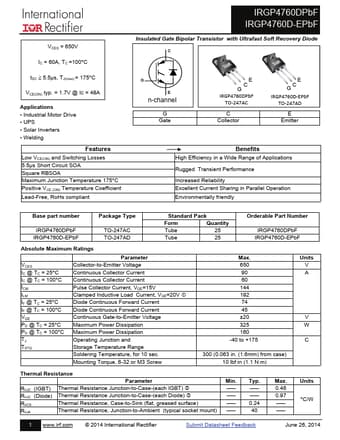

* Low VCE(ON) and Switching Losses 5.5µs Short Circuit SOA Square RBSOA Maximum Junction Temperature 175°C Positive VCE (ON) Temperature Coefficient Lead-Free, RoHs compliant IRGP4760DPbF IRGP4760D-EPbF Insulated Gate Bipolar Transistor with Ultrafast Soft Recovery Diode C G E n-channel G Gate E
IRGP4760DPbF Datasheet (914.13 KB)
IRGP4760DPbF
International Rectifier
914.13 KB
Insulated gate bipolar transistor.
VCES = 650V IC = 60A, TC =100°C tSC 5.5µs, TJ(max) = 175°C VCE(ON) typ. = 1.7V @ IC = 48A Applications Industrial Motor Drive .
