IRGP4760PbF Datasheet - International Rectifier

IRGP4760PbF, Insulated Gate Bipolar Transistor

  VCES = 650V IC = 60A, TC =100°C tSC 5.5µs, TJ(max) = 175°C VCE(ON) typ.= 1.7V @ IC = 48A Applications * Industrial Motor Drive * .

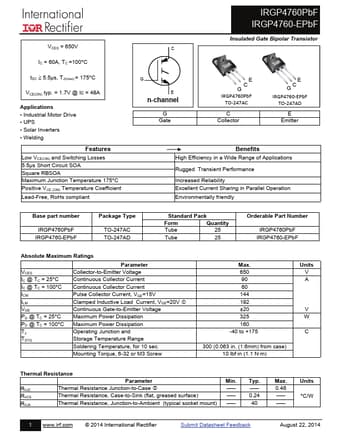

datasheet Preview Page 1 from Datasheet4u.com

IRGP4760PbF-InternationalRectifier.pdf

Preview of IRGP4760PbF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

IRGP4760PbF

Manufacturer:

International Rectifier

File Size:

810.59 KB

Description:

Insulated Gate Bipolar Transistor

Features

* Low VCE(ON) and Switching Losses 5.5µs Short Circuit SOA Square RBSOA Maximum Junction Temperature 175°C Positive VCE (ON) Temperature Coefficient Lead-Free, RoHs compliant C    IRGP4760PbF IRGP4760-EPbF Insulated Gate Bipolar Transistor G E n-channel G Gate E GC IRGP4760PbF  TO‐247AC  C Collec

Applications

* Industrial Motor Drive
* UPS
* Solar Inverters
